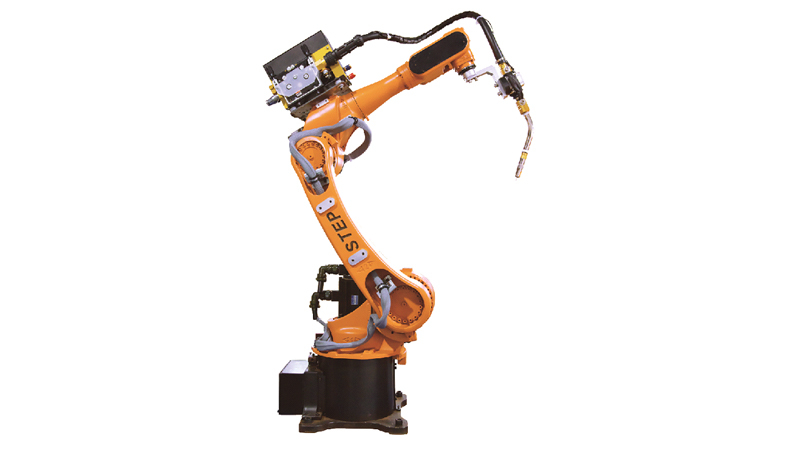

SA Series Robots

SA Series robots are compact, small and lightweight, ideal for welding application due to its high stability to finish welding job. It can realize high welding-path accuracy, considerably reduce welding cycle-time, and extend the lifetime of tubes and cables. In addition, SA Series robots can fit in narrow working space and can be floor mounted, inverted or on the wall in any angle.
Availability:

· Light weight

· High running speed

· High position repeat accuracy

· Good welding reliability





SA1400

Model

SA1400

Wrist Rated Payload

6kg

Max Working Radius

1405mm

DOF

6

Max Speed

J1

180° /s

J2

180° /s

J3

200° /s

J4

450° /s

J5

320° /s

J6

450° /s

Max Operation Area

J1

±165°

J2

﹢155° ~ -90°

J3

﹢70° ~ -200°

J4

±170°

J5

±120°

J6

±360°

Wrist Allowable Torque

J4

11.8 Nm

J5

9.8 Nm

J6

5.9 Nm

Wrist Allowable Inertia

J4

0.6 kg㎡

J5

0.25 kg㎡

J6

0.06kg㎡

Weight

143kg

Position Repeat Accuracy

±0.05mm

Ambient Temperature

0~40℃


SA1800


Model

SA1800

Wrist Rated Payload

8kg

Max Working Radius

1818mm

DOF

6

Max Speed

J1

150° /s

J2

150° /s

J3

160° /s

J4

360° /s

J5

320° /s

J6

360° /s

Max Operation Area

J1

±165°

J2

﹢155° ~ -90°

J3

﹢80° ~ -190°

J4

±185°

J5

±120°

J6

±360°

Wrist Allowable Torque

J4

22 Nm

J5

16.5 Nm

J6

6.7 Nm

Wrist Allowable Inertia

J4

0.75 kg㎡

J5

0.35 kg㎡

J6

0.1kg㎡

Weight

160kg

Position Repeat Accuracy

±0.05mm

Ambient Temperature

0~40℃



A. Arc welding, cutting:

1.Stability improves welding quality which ensures uniformity

2.Improve productivity and 24 hours continuous production

3.Improve labors working condition, long term operation in harmful condition

4.Reduce requirements for operation technique

5.Shorten the period of remodel change, reduce the relevant equipment cost

6.Realize bulk article of welding automation

7.Save floor space



B. Materias handling,palletizing:

1.More flexible, more stable, less energy consumption

2.High performance of moving stuff

3.Exceptionally long run time

4.Fixed automation
